Speed Deck
Product Overview

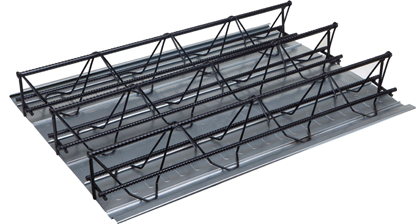

The best-selling product in the category of integrated deck plates. Speed Deck

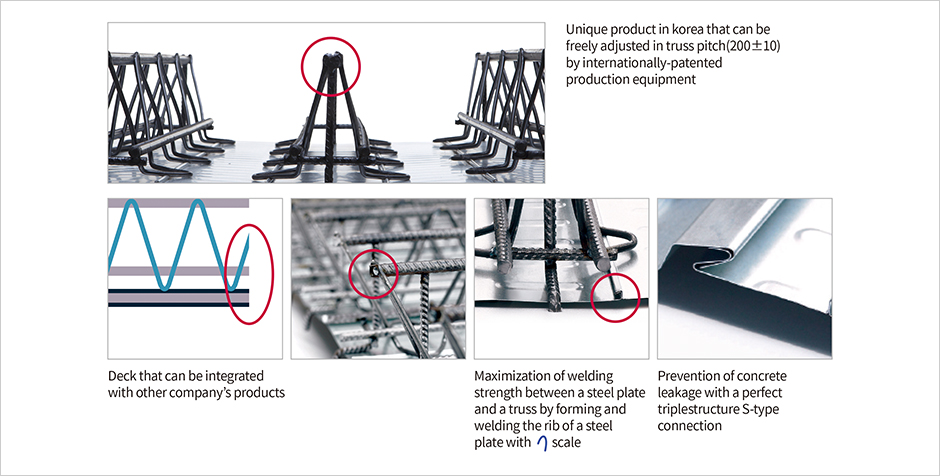

Unlike the existing integrated decks, Speed deck was able to solve a problem with corrosion that occurs when the welding points are exposed. In addition, the structure’s safety has been secured by cutting-edge equipment. A newly introduced equipment that can freely adjust the pitch cutting of truss connections, unique to South Korea.
Characteristics and advantages of
construction methods
Our product offers customized fabrication to fit the structural design, resulting in cost savings during construction, reduced on-site workload, and enhanced safety. It can be widely applied to various structures, including steel frame structures and reinforced concrete structures, maximizing its versatility.
Premium quality
- The precast concrete uses custom-made steel wire stress to maintain a consistent and uniform spacing between the reinforcements.
- Considering deflection in the product due to construction loads, resulting in reduced camber.
- The main bars are fixed to the lattice, ensuring consistent thickness of the cover.
- No additional fireproofing work is required.
Cost Reduction
- No need for support and formwork during construction.
- The cover is formed underneath, eliminating the need for additional fireproofing.
Reduced Construction Period
- Fast construction by welding, assembling, and transporting steel wire according to the structural design.
Versatility
- Offers a wide range of choices for various structures such as steel frame structures, reinforced concrete structures, and more.
- The Speed Deck can be easily substituted for the originally designed structure.

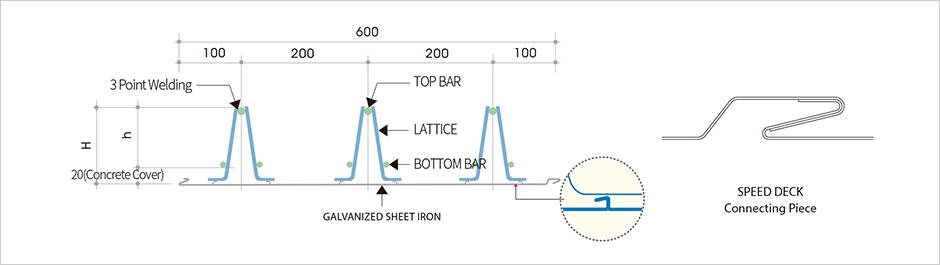

Shape and Cross-Section
| TYPE | SD1 | SD1A | SD2 | SD3 | SD3A | SD4 | SD5 | SD6 | SD6A | SD7 | SD8 | SD9 | SD10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TOP | D10 | D10 | D10 | D13 | D13 | D13 | D13 | D12 | D12 | D12 | D13 | D14 | D14 |
| BOTTOM | 2-D8 | 2-D7 | 2-D10 | 2-D8 | 2-D7 | 2-D10 | 2-D13 | 2-D8 | 2-D7 | 2-D10 | 2-D12 | 2-D10 | 2-D12 |
| LATTICE | ø5 ~ ø7 | ||||||||||||
| SLAB Thickness | 120 ~ 330㎜ | ||||||||||||
Construction Video
Construction Chart
