Dove Deck

Product Overview

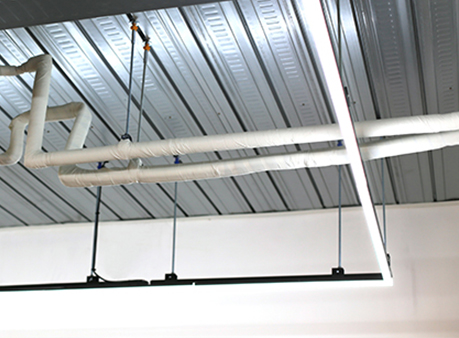

DOVEDECK사진

Integrated Hanging Device Deck PlateDove Deck

DoveDeck is a product that adds dove-tail features to the steel wire integrated deck plate, allowing for the installation of hanging devices. It addresses issues with time-consuming and hazardous manual work, potential fire hazards, and dust generation during conventional operations. DoveDeck enables flexible movement and installation of hanging devices, drastically reducing installation time by over 10 times. It is a revolutionary product that greatly facilitates the attachment and detachment of various hanging fixtures during installation.

Characteristics and advantages of
construction methods

The deck plate is an improved version that addresses the reduction in construction efficiency caused by anchor drilling. It minimizes on-site workload, shortens installation time, and excels in dust-free mobility and detachment without any dust generation.

Characteristics and advantages of construction methods
Category Dovedeck + Trapezoid Conventional method
(Full threaded bolt)
Wire Hanging
Construction Image 도브데크테이블이미지 도브데크테이블이미지 도브데크테이블이미지
Required materials/
components
None Drill (for anchor installation), spanner, hammer, grinder. Drill, spanner, wire cutter.
Work time
(Number of personnel: 3)
10 min (30%) 29 min and 20 sec (100%) 15 min and 20 sec (50%)
Construction efficiency -Process: 3 stages
-Tools: None
-Installation: 10 minutes
-Process: 5 stages
-Tools: 4
-Installation: 29 minutes and 20 sec
-Process: 4 stages
-Tools: 3
-Installation: 15 minutes and 20 sec
Safety -Manual work: 30%
-Dust generation: 0%
-Fire risk: 0%
-Manual work: 100%
-Dust generation: 100%
-Fire risk: 100%
-Manual work: 50%
-Dust generation: 100%
-Fire risk: 100%
Cost-effectiveness 80% 100% 90%
Remarks/Notes
  • -Performance comparison based on new construction buildings:
  • -For remodeling projects, compared to conventional methods, Wire hanging anticipates a 10% additional improvement due to reduced demolition, night work, and limited site conditions.
  • -For remodeling projects, DoveDeck+Trapezoid installation expects a 20% additional improvement compared to conventional methods.

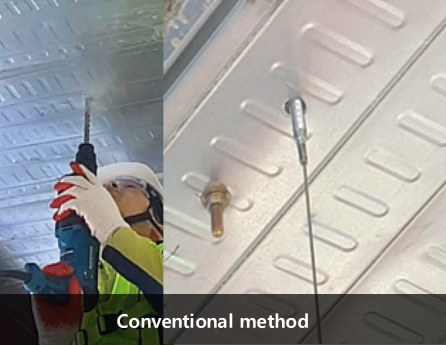

  • dovedeck장점이미지1

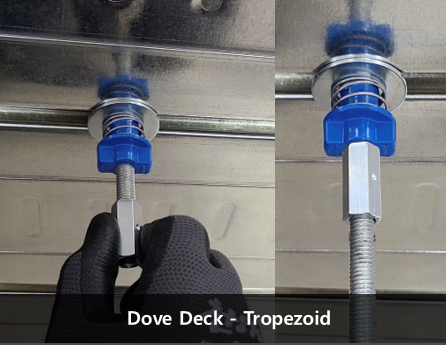

  • dovedeck장점이미지2

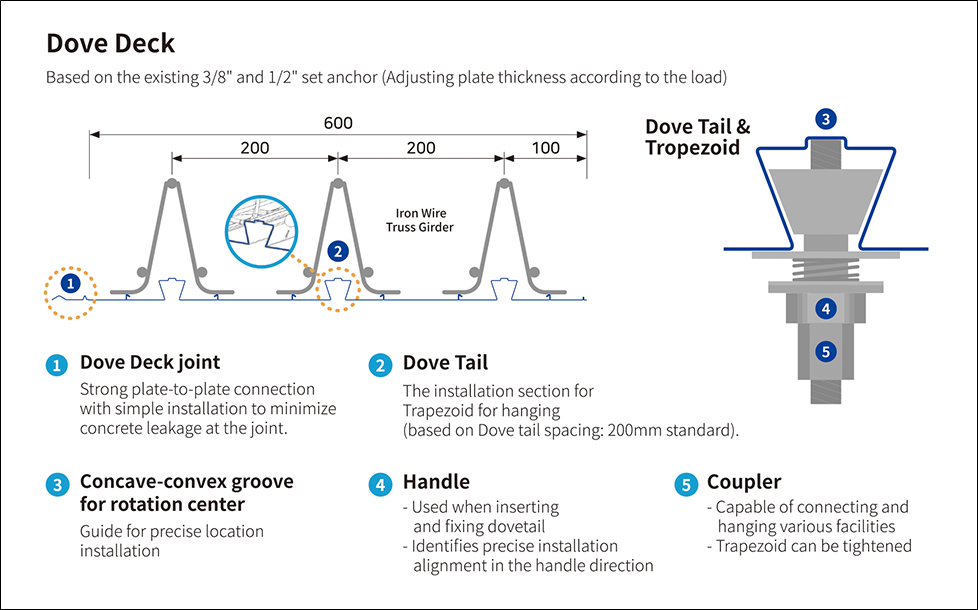

Shape and Cross-Section

dovedeck형상과단면 이미지
