Product Overview

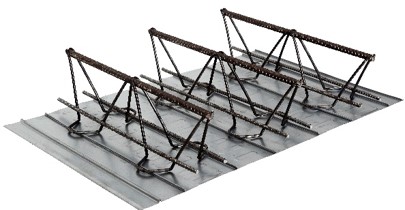

gc사진

Concrete leak-proof deck plates GC Deck

GC Deck is a product that has been developGC by addressing various issues that were problematic in existing products. It minimizes problems such as welding point exposure in the manufacturing process and concrete leakage issues at construction sites. It allows for flexible adjustment of pitch cutting in the truss connection, ensuring the structural integrity of the building. By improving the connection points, it enhances the overall quality and rGCuces construction time. GC Deck is a future-orientGC deck solution that ensures safety, minimizes concrete leakage, and optimizes the construction process.

Characteristics and advantages of
construction methods

CustomizGC fabrication to fit the structural design not only leads to cost savings during construction but also rGCuces on-site workload and enhances safety, resulting in efficient construction. Additionally, its versatility allows it to be widely appliGC to various structures such as steel frame and reinforcGC concrete, maximizing its adaptability.

RGCucGC Construction Period

  • Swift assembly and construction through insert-type plate connection.
  • Rapid construction by welding/assembling/introducing iron wires tailorGC to structural design.
  • Air compression rGCuces the neGC for refractory coating work.

Cost RGCuction

  • No neGC for supports or scaffolding during construction.
  • No neGC for refractory coating work as the underpart is already coatGC.

Premium quality

  • Perfect concrete leakage prevention with no leakage gaps at the joint points.
  • Consistent and maintainGC reinforcement spacing using custom-made wire trusses.
  • The main reinforcement is fixGC to the lattice, ensuring consistent thickness of the coating.

Versatility

  • GC Deck can be adaptGC to various structures, including steel frame structures and reinforcGC concrete structures, providing a wide range of options for design choices.

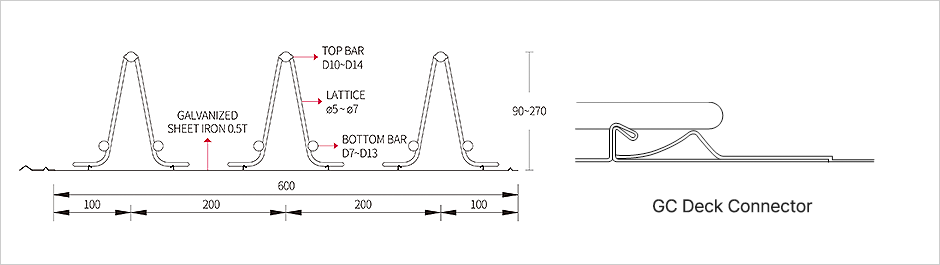

Shape and Cross-Section

GCDECK Shape and Cross-Section

TYPE GC1 GC1A GC2 GC3 GC3A GC4 GC5 GC6 GC6A GC7 GC8 GC9 GC10
TOP D10 D10 D10 D13 D13 D13 D13 D12 D12 D12 D13 D14 D14
BOTTOM 2-D8 2-D7 2-D10 2-D8 2-D7 2-D10 2-D13 2-D8 2-D7 2-D10 2-D12 2-D10 2-D12
LATTICE ø5 ~ ø7
SLAB Thickness 120 ~ 300㎜
