Product Overview

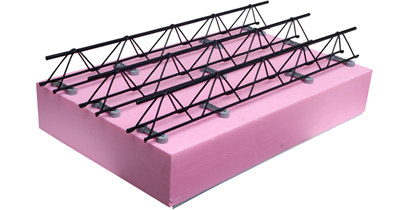

INSUECK사진

Integrated Insulation Deck PlateINSU Deck

Insu-deck is an integrated insulation deck plate equipped with insulation material between truss girders and detachable steel plates. With this system, there is no need for a separate process to attach insulation material, allowing for simultaneous construction of formwork, insulation, and reinforcement. This results in shortened construction time and reduced costs.

Characteristics and advantages of
construction methods

It is an eco-friendly product where insulation material is integrated with concrete to prevent a decrease in insulation performance. It eliminates the use of adhesives during post-installation of insulation material and avoids the generation of harmful substances during insulation spray work.

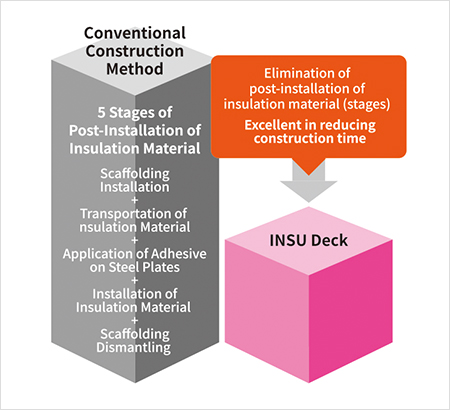

INSUDECK 장점

Environmentally friendly

  • Minimization of dust and noise generation due to the absence of formwork installation and dismantling process.

Economical

  • Cost reduction through the use of formless construction method.
  • No additional cost for separate insulation material installation.

High quality

  • Improved construction efficiency and cost-effectiveness.
  • Excellent insulation effect leading to energy savings.
  • Integration of insulation material with concrete, preventing detachment of insulation.
  • Compatibility of the lower finish with conventional sections.

Safety

  • No need for formwork installation work.
  • Simplified dismantling of the floor formwork.

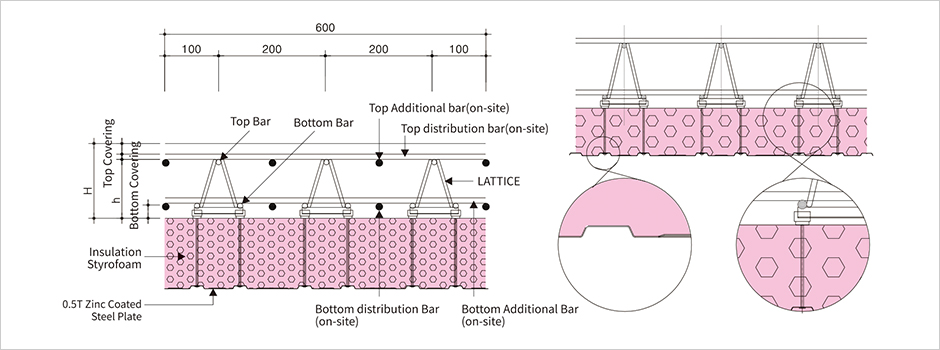

Shape and Cross-Section

INSUDECK형상과단면 이미지

TYPE ND1 ND1A ND2 ND3 ND3A ND4 ND5 ND6 ND6A ND7 ND8 ND9 ND10
TOP D10 D10 D10 D13 D13 D13 D13 D12 D12 D12 D13 D14 D14
BOTTOM 2-D8 2-D7 2-D10 2-D8 2-D7 2-D10 2-D13 2-D8 2-D7 2-D10 2-D12 2-D10 2-D12
LATTICE ø5 ~ ø7
SLAB 두께 120 ~ 330㎜
