ECODECK

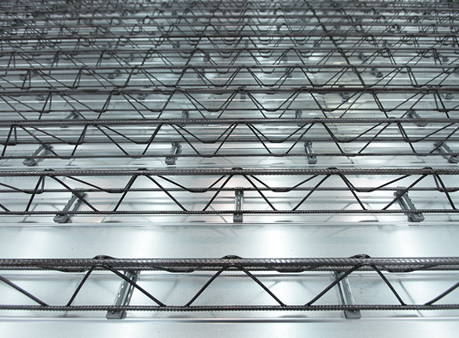

Environmentally friendly deck plate with demoldable bottom plate Eco Deck

An eco-friendly demoldable deck plate that can be separated to recycle the lower steel plate after curing concrete by connecting the upper truss girder and the lower steel plate with a spacer. This is the final edition of integrated decks as an innovative product that has various advantages compared to existing integrated decks on the market, especially the unique advantage of the form method.

Characteristics and advantages of
construction methods

After construction, our revolutionary environmentally friendly deck plate allows for the separation of the bottom plate, which can be recycled as a scrap metal. Furthermore, the separation of the bottom plate and truss girder enables accurate detection of cracks and leakage points for easy repairs.

Environmentally Friendly

An environmentally friendly product with recyclable separated steel plates.
Adoption of a monolithic construction method to minimize on-site waste generation.
Minimization of on-site noise and dust generation.

Premium quality

Superior installation due to easy on-site cutting compared to other products.
Factory-made prefabricated items ensure accurate positioning of reinforcement and easy placement compared to traditional methods.
Lightweight due to the use of galvanized steel plates.

Safety

Easy identification and repair of concrete cracks.
Accurate detection of leakage points.
Excellent structural integrity due to adjustable truss pitch.
Partial dismantling allows for integration with monolithic deck sections.

Shape and Cross-Section

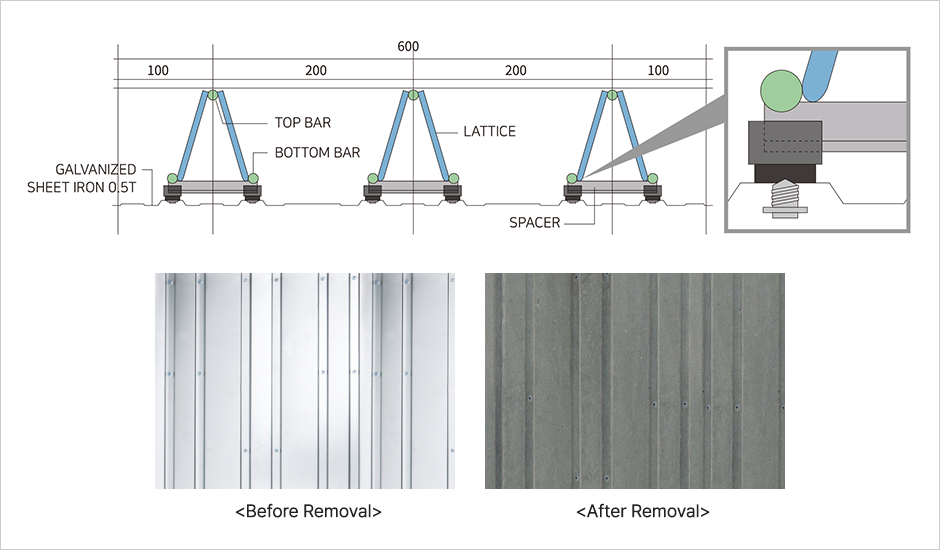

ECODECK Shape and Cross-Section

TYPE	ED1	ED1A	ED2	ED3	ED3A	ED4	ED5	ED6	ED6A	ED7	ED8	ED9	ED10
TOP	D10	D10	D10	D13	D13	D13	D13	D12	D12	D12	D13	D14	D14
BOTTOM	2-D8	2-D7	2-D10	2-D8	2-D7	2-D10	2-D13	2-D8	2-D7	2-D10	2-D12	2-D10	2-D12
LATTICE	ø5 ~ ø7
SLAB Thickness	120 ~ 330㎜
